Description
– Machined 304 Stainless Steel
– Comes with adjustable finish nuts as compared to the crimped ring used on most other stern eyes
– Has rolled threads
– Plate Size: (plate 1) 2-1/4″ x 3/4″, (plate 2) 2-3/4″ x 1-1/4″
– Thread: 3/8″ NC

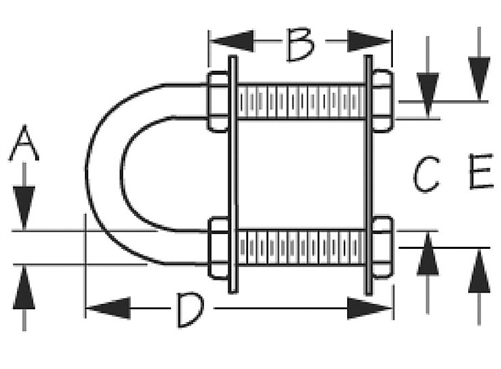

– A: 3/8″
– B: 3-1/2″
– C: 1-1/16″
– D: 4-15/16″
– E: 1-7/16″
– B.S.: 16,000 lbs.
Additional information
| Weight | 0.728 lbs |
|---|---|
| Dimensions | 8.88 × 3.88 × 0.88 in |
