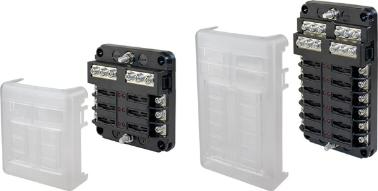

Description
Red LED lights indicate when fuse is blown or missing
Uses ATO/ATC & ATM fuses 1A-30A
Main line terminal rating is 100A 32VDC max, with M5 metric threaded studs
Single line terminal rating is 30A 32VDC max, with M4 metric threaded studs
Includes semi-transparent cover and 71 labels
Terminals are nickel plated copper with stainless steel screws
Installs with four #8 FH fasteners (not included) A 3-7/16″, B 3-3/8″ C 1-7/16″
Additional information
| Weight | 0.026 lbs |
|---|---|
| Dimensions | 4.75 × 1.5 × 7.25 in |
