Water Pump Repair Kit

Description

61A-W0078-A4-00 – This Yamaha Water Pump Repair Kit Applies to the following outboard models:

• F150
• F200
• F225
• 225
• 250 (1992 & newer)
• S150
• SX150
• S200
• SX200
• S250
• SX250
• V150
• V250
• VX150
• VX250
• VZ150
• VZ200 (2.6L)
• Z150
• Z300
• P150
• P200
• C150 (1997~1999)
• PX150 (1999)

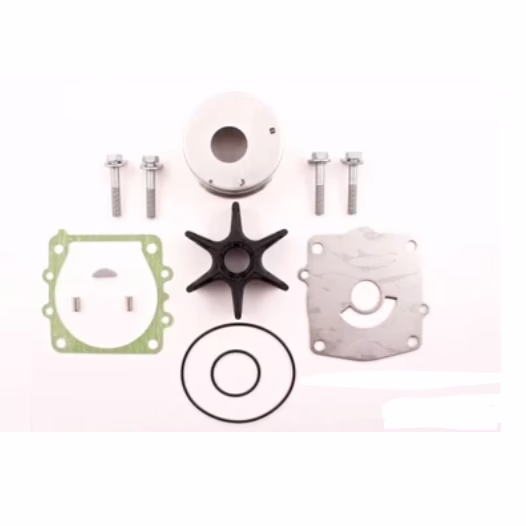

Kit Includes:

• 1 Cartridge Insert 61A-44322-02-00
• 1 O-Ring 93210-86M38-00
• 1 O-Ring 93210-37M67-00
• 1 Impeller 6E5-44352-01-00
• 1 Cartridge Outer Plate 6G5-44323-01-00
• 1 Water Pump Gasket 6E5-44315-A0-00
• 2 Dowel Pins 93606-12019-00
• 4 Bolts, With Washer 90119-08M14-00
• 1 Woodruff Key 90280-04M05-00
